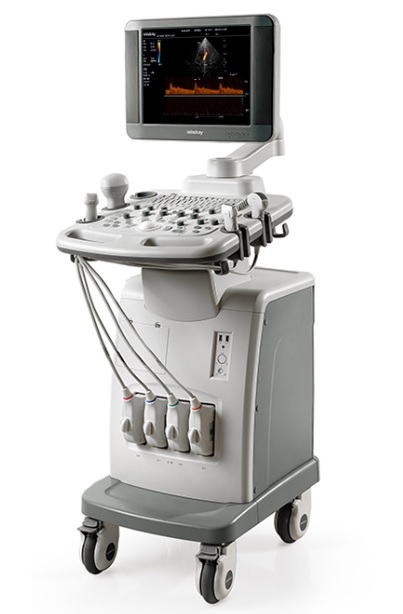

Mindray DC-T6






Overview





A higher version compared with similar lined systems, DC-T6 is equipped with advanced technologies and clinically relevant features providing sound image quality to support daily imaging requirements spread across a wide range of applications.








Performance
PSHTM (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.







iBeamTM

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.







iClearTM

Gain improved image quality based on auto structure detection
Sharper & Continuous Edges
Smooth Uniform Tissues
Cleaner no echo areas



Multiple Beam Formation

Maximum 8 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.





iScapeTM

Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.







ExFOV

Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.



B-Steer/ iNeedleTM

Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.



Workflow
Auto IMT (Intima-Media Thickness)

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.





iTouchTM

Gain instant auto image optimization in B, Color and PW Modes on the click of a single key.







iZoomTM

Gain instant full screen view on the click of a single key.



iStationTM

Mindrays unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.



Connectivity

Directly transfer images and reports to PC via network cable.
USB Flash Memory
Backup, Export, Transfer
DVD Recording & Writing
DICOM 3.0





Ergonomics

High-resolution 15or 17 LCD monitor
Omni directional arm with a rotatable and height-adjustable control panel
